DIY omni directional wheels by KeerBot

Beware,Tech stuff! KeerBot needs to move on the walls to all directions, so I developed a DIY Omni  directional wheel.

Omni directional wheel is a wheel that enables the moving to all sides, it is actually a ball that slides on the housing (as can be seen here in sparkfun). the other thing that can be seen in that link is the price…after I bought some wheels, that got stuck by the spray paint test here, I though of two issues:

  • To make it cheaper
  • To make it simpler (again, KISS principle), and use parts that are available and already in use. * It helped me that my wheel are not carrying any weight, but only support the chassis from being dragged on the painted wall.
KeerBot_omni_wheel2

DIY Omni directional wheels by KeerBot

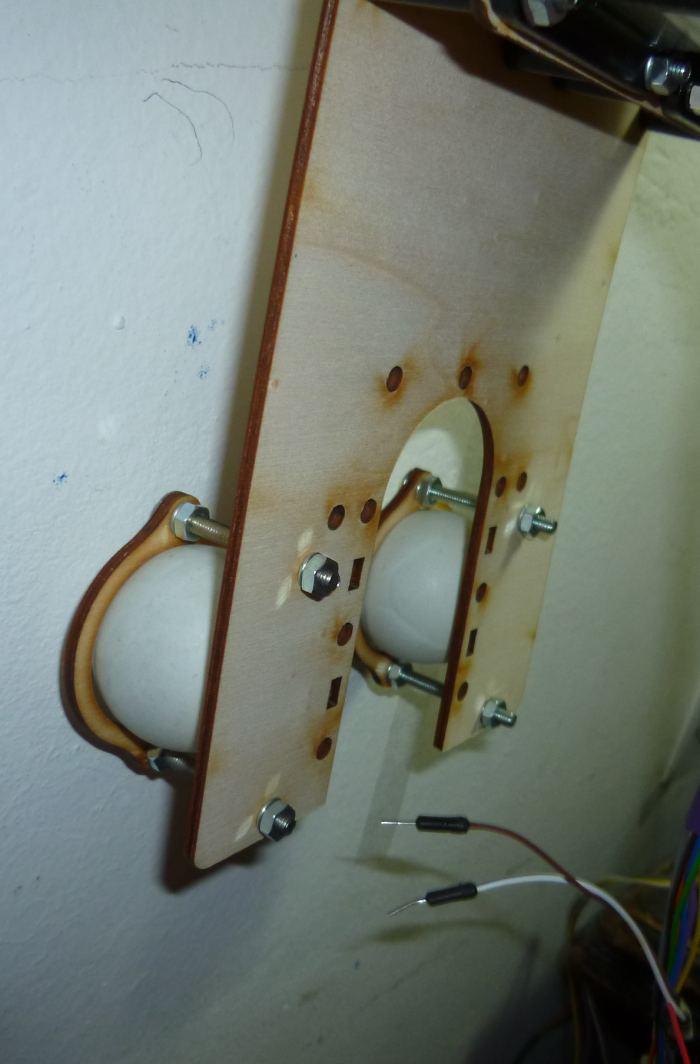

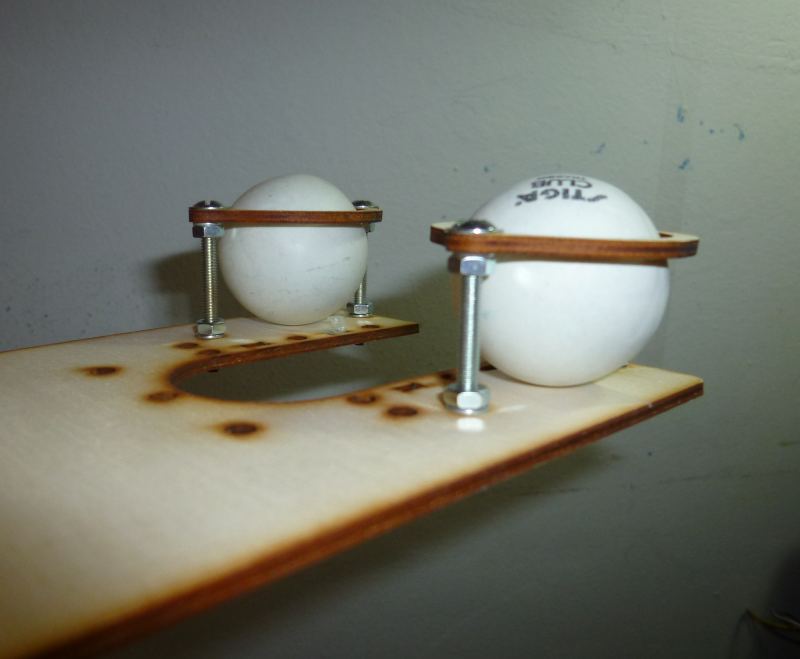

As you can see it is some laser cut plywood (will work better with Perspex), some bolts and ping-pong balls (light, cheap and available).

KeerBot_omni_wheel1

DIY Omni directional wheels by KeerBot

I think that the solution with some minor changes (metal balls/PA balls/ Perspex chassis …)  can fit any need for omni-wheel, Enjoy!
